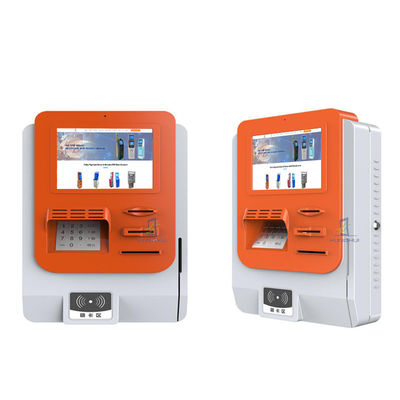

19Inch Wall Mounted Kiosk Self Service Printing With Cash Payment
Product Details:
Place of Origin: | SHENZHEN |
Brand Name: | HUNGHUI |
Certification: | CE\FCC\CCC |
Model Number: | KH-301 |
Payment & Shipping Terms:
Minimum Order Quantity: | 5PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Security Packing method with bubble foam and wooden case |
Delivery Time: | 3-4weeks upon payment |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 1000 PCS |
Detail Information |
|||
Touch Screen: | Capacitive With 10 Touch Points | Display Size: | 15 17 Or 19inch |
---|---|---|---|
PC: | Custmozed As Options | Voltage: | 110/220v 50/60Hz |
Color: | Custmozed As Options | Product Name: | Automatic Restaurant Fast Self Service Food Ordering Machine/ Kiosk,Wifi Portable Selfie Wall Mounted Mall Kiosk Ideas |
Resolution: | 1280*1024 | Optional Parts: | Printer,metal Keyboard,Barcode Scanner,WiFi,Card Reader |
High Light: | 1280*1024 Wall Mounted Kiosk,1280*1024 self service printing kiosk,19Inch Wall Mounted Kiosk |
Product Description
Wall Mounted Kiosk Self ServicePrinting Kiosk With Cash payment Kiosk/19 inch touch screenkiosk
was designed having in mind the components that can integrate. The transact is the chameleon of the kiosks, because it can easily adapt the needs of each client.
Standard hardware components List of High Safety Performance Self service Bill Payment Kiosk Terminal With LCD Display is as following:
Specifications
THE DETAIL CONFIGURATION |
||||
No. |
Components |
Detail Description |
||
1 | PC | ˙ Mainboard : H61, intel dual core G2030, 3.0GHz Processor ˙ RAM: DDR3 1333 4GB; 500G HDD, 7200r. ˙ 2xRS-232 Ports, 8xUSB Ports, 1x10/100M Net Port, 1xVGA, 1xLTP ˙ Data Cable; Power Cable; Newtwork Cable ˙ Integrated disply card, Net Card, Sound Card,Graphic Card,Video board embedded ˙ Security computer case inside |
||
2 | Monitor | ˙ TFT LCD ˙ Brightness: 350cd/m2 ˙ Contrast: 800:1 ˙ Standard resolution:1920*1080 ˙ Response Time:8ms;Dot pitch: 0.297; |
||
3 | Touch screen | ˙ Resolution: 4096*4096 ˙ Deviation of Error: ±<1.0% ˙ Surface Hardness: Mohs' hardness rating of 7 ˙ Durability:Scratch-free,More than 50,000,000 touches without failure ˙ Operating Force: Touch force less than 100g ˙ Transmittance: 92%~98% |
||
4 | Enclosure | ˙ Durable steel frame 2.0mm, powder coated steel back covers ˙ Ergonomically sleek and smart design ˙ Easy to install and operate with drawers ˙ Security locks ˙ Internal fans for ventilation ˙ Moistureproof,Antirust,Anti-acid,Static free ˙ OEM Logo and color. |
||
5 | A4 Printer | ˙ Print technology: Laser; ˙ Resolution (Black): up to 600x600dpi; ˙ Print speed, black (normal): Up to 42 ppm; ˙ Suggest monthly printing: 250~2000 sheets. |
||
6 | UPS | ˙ Input voltage: 145~290VAC; ˙ Output voltage: 200~255VAC; ˙ Output frequency: 50±0.5Hz; ˙ Transient time: ≤30ms; ˙ Max time for supplying a single: 10~30 minutes( for single PC) |
||
7 | Printer | ˙Thermal printing technology 8dot/mm; ˙Graphic and text printing; ˙Paper width 80mm; ˙Speed > of 150 mm/sec; ˙Paper running out alarm; ˙Paper jam alarm; ˙Blackmark sensor. |
||
8 | Metal Keyboard | ˙64 Keys PC-Keyboard Standard Layout; ˙IP65 Water-proof,dust-proof,Vandal-proof Performance; ˙Rugged stainless steel panel with trackball; ˙Interface PS/2, USB available, No driver needed, plug and play. |
||
9 | NFC Card Reader | ˙ Interface: USB Full Speed ˙ Operating Distance: Up to 50 mm (depends on the tag type) ˙ Supply Voltage: Regulated 5V DC ˙ Supply Current: 200mA (operating); 50mA (standby); 100mA (normal) ˙ Operating Temperature: 0-50 °C ˙ Operating Frequency: 13.56 MHz ˙ Smart Card Interface Support: ISO14443 Type A & B, Mifare, FeliCa , 4 types of NFC (ISO/IEC18092) tags; ˙ Compliance / Certifications: ISO 14443, CE, FCC, KC, VCCI, PC/SC, CCID, RoHS, USB Full Speed. Microsoft WHQL: 2000, XP, Vista, 7, 8, Server 2003, Server 2008, Server 2008 R2, Server 2012; |
||
10 | Watch Dog | ˙ Watch Dog | ||
11 | WiFi | ˙ Wireless WiFi | ||
12 | Speakers | ˙ Left and right bi-channel; amplified output; Multimedia speaker | ||
13 | OS system | ˙ Windows7/windows 10 English test Version with all the drivers | ||
14 | Packing | ˙ Standard export packing | ||
15 | Warranty | ˙ One year |
Applications:
- Banks
- Hotel
- Hospital
- Theatre
- Railway Station
- Metro Station
- Parking Lot
- Shopping Mall
