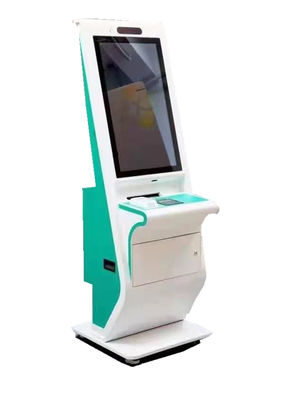

• Airport Self service check-in kiosk with passport scanner for healthcare and hotel
  • Airport Self service check-in kiosk with passport scanner for healthcare and hotel
Airport Self service check-in kiosk with passport scanner for healthcare and hotel

Airport Self service check-in kiosk with passport scanner for healthcare and hotel

Product Details:

Place of Origin: China
Brand Name: Hunghui
Certification: FCC/CE
Model Number: KH-2044

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Standard Exporting Package with bubble foam, carton and wooden case
Delivery Time: 15-25 days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1500 units per month
Get Best Price Contact Now

Detail Information

Keyword:: Hotel Self Check In Kiosk Main Parts:: Passport Scanner, RFID Card Dispenser, Cash Acceptor
Screen:: 19inch Or 17inch OS:: Winodws/Linux/Android
Components:: Barcode Scanner, Camera, NFC, Card Reader, Pinpad Max Resolution:: 1920*1080
Power Supply:: AC110V-240V Installation:: Floor Standing
Color And Logo:: Customized
High Light:

Antirust Airport Self Check In Kiosk


Antirust kiosk machine in airport


Airport Self Check In Kiosk 1920*1080

Product Description

Airport Self service check-in kiosk with passport scanner for healthcare and hotel


Self Check in Kiosks are touch-screen devices allowing passengers to do self-check-in at a certain time

prior to their boarding. Using the airline check-in kiosks, passengers can choose their seat, check-in,

and print their boarding passes many hours before departure. DCS.aero has provided a full list of kiosk

self check in providers in order to assist individuals who intend to choose appropriate kiosks for their airport.


Optional Accessories:
1. Bluetooth connection .
2. Barcode reader:1D or 2D barcode reader
3. Printer:Epson 80MM thermal printer with auto cutter or HP A4 size laser printer.
4. Card reader: IC card reader/magnetic card reader/rfid card reader ,etc.
5. Metal keybaord with trackball,stainless steel,waterproof,encrypted
6. Cash acceptor:Cashcode,with RS232 interface, DC12V power,accepts multi-currency
7. Coin acceptor:accepts mul-currency coins
8. Camera







Detail Description

1 PC ˙ Mainboard : H61, intel dual core G2030, 3.0GHz Processor
˙ RAM: DDR3 1333 4GB; 500G HDD, 7200r.
˙ 2xRS-232 Ports, 8xUSB Ports, 1x10/100M Net Port, 1xVGA, 1xLTP
˙ Data Cable; Power Cable; Newtwork Cable
˙ Integrated disply card, Net Card, Sound Card,Graphic Card,Video board embedded
˙ Security computer case inside
2 Monitor ˙21.5 inchTFT LCD
˙ Brightness: 350cd/m2
˙ Contrast: 800:1
˙ Standard resolution:1920*1080
˙ Response Time:8ms;Dot pitch: 0.297;
3 Touch screen ˙ Resolution: 4096*4096
˙ Deviation of Error: ±<1.0%
˙ Surface Hardness: Mohs' hardness rating of 7
˙ Durability:Scratch-free,More than 50,000,000 touches without failure
˙ Operating Force: Touch force less than 100g
˙ Transmittance: 92%~98%
4 Enclosure ˙ Durable steel frame 2.0mm, powder coated steel back covers
˙ Ergonomically sleek and smart design
˙ Easy to install and operate with drawers
˙ Security locks
˙ Internal fans for ventilation
˙ Moistureproof,Antirust,Anti-acid,Static free
˙ OEM Logo and color.
5 ROOM Card Dispenser
Power Supply 24VDC( Max. current 2.5A, MIN current 0.1A)
Interface TTL/RS232
Card Tank Volume 175pcs @ 0.8mm; 130pcs for concavo-convex character number card
350pcs @ 0.4mm thickness cards
Using condition use in the installing case
Card size 54 +/- 1.5mm cards relief
85 +/- 1.5mm long card
0.2-1.2mm thick card(adjustable)
Cards or paper cards material polyester cards
Error Card Reclaim No support
Weight 1600g
Dimension 175*190*92mm
Operating temperature -20 to 60 C-degrees
Operating humidity 30-90% RH
6 ID document scanner
ICAO 9303 standard compliant documents:
  MRZ ID-1 (Identity Card)
    ID-2 (Passport, Visa)
    ID-3 (Passport)
  VIZ Customized ID document research and OCR development
Reading Capaility
Read and write contactless ICs according to ISO/IEC 14443-S (Type A/B);
Support e-passport Basic Access Control (BAC) & Extended Access Control (EAC);
Support active/passive authentication;
Contact card reading
Read smart card according to ISO/IEC 7816;
Barcode Reading
1D: Code 128, Code 39, Interleaved 2 of 5;
2D: PDF 417, QR Code, Data Matrix , Aztec Code
Visible, IR and UV
Color Depth
24 bits/pixels
CMOS, 5.0 Megapixel
Field of View
7 Printer ˙Thermal printing technology 8dot/mm;
˙Graphic and text printing;
˙Paper width 80mm;
˙Speed > of 150 mm/sec;
˙Paper running out alarm;
˙Paper jam alarm;
˙Blackmark sensor.
8 Metal Keyboard ˙64 Keys PC-Keyboard Standard Layout;
˙IP65 Water-proof,dust-proof,Vandal-proof Performance;
˙Rugged stainless steel panel with trackball;
˙Interface PS/2, USB available, No driver needed, plug and play.
9 NFC Card Reader ˙ Interface: USB Full Speed
˙ Operating Distance: Up to 50 mm (depends on the tag type)
˙ Supply Voltage: Regulated 5V DC
˙ Supply Current: 200mA (operating); 50mA (standby); 100mA (normal)
˙ Operating Temperature: 0-50 °C
˙ Operating Frequency: 13.56 MHz
˙ Smart Card Interface Support: ISO14443 Type A & B, Mifare, FeliCa , 4 types of NFC (ISO/IEC18092) tags;
˙ Compliance / Certifications: ISO 14443, CE, FCC, KC, VCCI, PC/SC, CCID, RoHS, USB Full Speed. Microsoft WHQL: 2000, XP, Vista, 7, 8, Server 2003, Server 2008, Server 2008 R2, Server 2012;
10 Watch Dog ˙ Watch Dog
11 WiFi ˙ Wireless WiFi
12 Speakers ˙ Left and right bi-channel; amplified output; Multimedia speaker
13 OS system ˙ Windows7/windows 10 English test Version with all the drivers
14 Packing ˙ Standard export packing
15 Warranty ˙ One year


Airport Self service check-in kiosk with passport scanner for healthcare and hotel 0



Q1: Are you manufacturer(factory)?
A1: Yes, we’re OEM/ODM service available here. Welcome to share your ideas with us. It’s our pleasure to provide best solution for you.

Q2: What’s your MOQ?
A2: One sample can be provided first for evaluation. Any quantity is welcome here for non-customized products.

Q3: What’s the lead time?
A3: Mass order: 20-25 days depending on order quantity.Sample: within 5 day when there is stock, 20-25 days for custom design.

Q4: What’s your guarantee for the products?
A4: All our products have one-year guarantee from the shipping date. And it is ok to upgrade to two or three years guarantee with additional cost.

Q5: What kind of payment terms?
A5: Payment: 50% deposit before production, 50% balance payment before shipping. Samples need full payment.

Q6: Do you accept door shipping service?
A6: Yes, we do. Also we are VIP customer from DHL, for sea shipment, we can provide DDU, DDP, EXW, FOB,etc.
