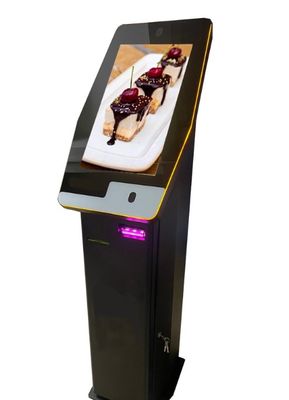

Automatic RFID NFC Smart Cash Payment Kiosk Machine ATM Bill Acceptor Self Service
Product Details:
Place of Origin: | China |
Brand Name: | Hunghui |
Certification: | CE |
Model Number: | KH-2020 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiable |
Packaging Details: | Security Packing method with bubble foam and wooden case |
Delivery Time: | 15-25 days |
Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1500 per month |
Detail Information |
|||
Product Name: | Payment Terminal | Touch Screen Type: | Capacitive Touch With 10 Touch Points |
---|---|---|---|
Operation System: | Windows/Linux/Android | Functions: | Buy And Sell Bitcoin Atm |
Power Supply: | 110-240V 50HZ/60HZ | Certificated: | ISO9001, CE |
Warranty: | One Year | Sold To Which Countries: | USA/Japan/Canada/Malaysia/UK/HK/Mexico/Australia Etc |
High Light: | RFID Payment Kiosk Machine,Anti Vandal Payment Kiosk Machine,Anti Vandal Self Service Kiosk |
Product Description
Smart Cash Electronic Kiosk Anti Vandal Atm Bill Acceptor Self Service Automatic Rfid Nfc Android
Function:
1. Ticket vending
2. Self-service payment
3. Money Transfer
4. Card issuing
Specifications:
Components | Details | |
PC system | Industrial Board | H81 industrial mainboard(Advantech /Gigabyte/Ausa/Others) |
CPU | Dual core G3260, 3.3ghz; Intel Dual Core I3/I5/I7 | |
RAM | 4 GB / 8GB | |
HDD/SSD | 500G/120G | |
Interface | 10 RS-232 Ports;1 LTP;8 USB Ports,1 100/1000M Net Port ;Integrated Net Card, Sound Card | |
PC Power Supply | HUNTKEY/Great Wall | |
LCD monitor | Screen Size | 17 inch/19inch ( optional from 8inch to 65inch) |
Brightness | 250cd/m2( optional from 250cd/m2 to 2000cd/m2) | |
angle | horizontal 100°above;Vertical 80°above | |
Contrast | 1000:01:00 | |
Backlight tube life | more than 40,000hours | |
Max. resolution | 1280×1024 | |
Touch screen | Screen Size | 17/19 inch Diagonal ( optional from 8inch to 65inch) |
Resolution | 4096x4096 | |
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times | ||
Bank/Credit Card Reader | Interface | RS232 |
Card Type | Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card | |
Power Voltage | DC 24V±5% | |
Card Entry method | Magnetic signal, Optoelectronic signal and rear card signal | |
EPP/Encrypted Pinpad | Interface | RS232/USB |
Keylift~span | 2,000,000 cycles | |
Key force | 2~3N | |
Key trip | >2.5mm | |
Compliance: | PCI 4.x approval | |
Protection level | ip65 | |
Cash recycler | Validation Rate | 99% or higher |
Notes recyler capacity: | 70 notes | |
Banknote Insertion | Four-way | |
Escrow | One banknote | |
Capacity | 1200 notes Max | |
QR Scanner | Support 2D Code(GM , MICRO QR,MICRO PDF417,QR Code , Data Matrix, Chinese-Sensible Code,etc.) | |
One-Dimensional Code(Code 128, EAN-13, EAN-8, Code39s Code93s UPC-A, etc.) | ||
Can support to scanner Mobile phone or paper's QR/barcode | ||
Resolution Ratio:640x480 pixels | ||
Camera | With 1080p high-def, H.264 video compression, and a wide 90-degree field of view.2 Million Pixels | |
receipt thermal printer | Autocutter | included |
Technology | Thermal printing | |
Paper width | 80mm | |
Printing speed | 150mm/s | |
Data buffer | 4KB | |
Interface | RS232 ,USB | |
Digital Power Supply | AC input voltage range | 100~240VAC |
Frequency | 50Hz to 60Hz | |
AC input voltage range | 100~240VAC | |
Frequency | 50Hz to 60Hz | |
Accessories | Wire-lan port, USB ports, speakers, fans, cables, screws, etc. | |
Operation System | Windows 7 or Windows XP operation system without license | |
KIOSK Cabinet | Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. | |
Packing |
Security Packing method with bubble foam and wooden case |
Productions photo:
FAQ:
Q1: Are you manufacturer(factory)?
A1: Yes, we’re. Also OEM/ODM service available here. Welcome to share your ideas with us. It’s our pleasure to provide best solution for you.
Q2: What’s your MOQ?
A2: One sample can be provided first for evaluation.
Any quantity is welcome here for non-customized products.
As per customized products, please contact us for further confirmation.
Q3: What’s the lead time?
A3: Mass order: 5-10 days depending on order quantity.
Sample: within 5 day when there is stock, 20-25 days for custom design.
Q4: What’s your guarantee for the products?
A4: All our products have one-year guarantee from the shipping date.
And it is ok to upgrade to two or three years guarantee with additional cost.
Q5: What kind of payment terms?
A5: Payment: 50% deposit before production, 50% balance payment before shipping. Samples need full payment.
